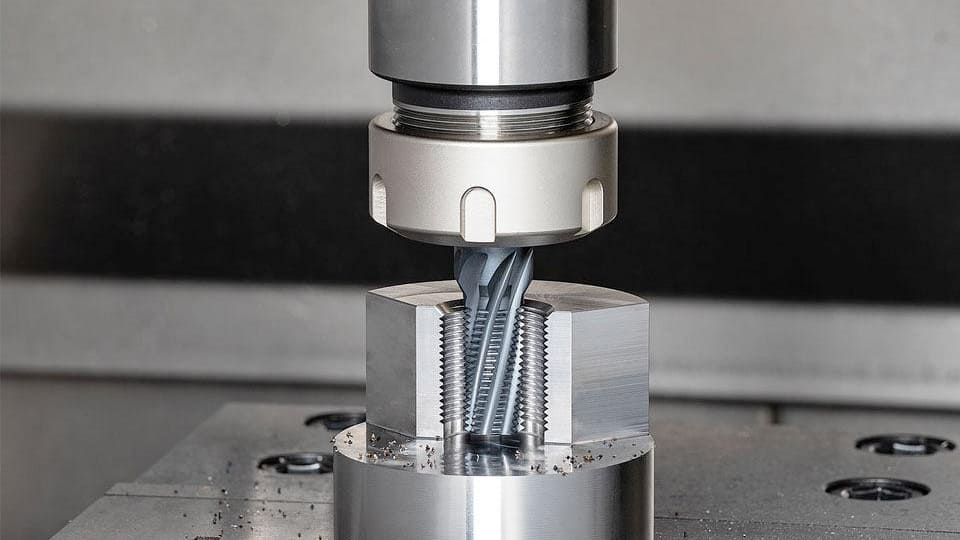

Thread milling is a process used for machining threads in holes of various sizes, particularly large-diameter ones. It shares some similarities with tapping, but differs in that the thread milling cutter has a diameter significantly smaller than the hole being threaded. As a result, the tool follows a circular path around the circumference of the hole to form the thread. This article discusses what thread milling is, how it works, its types, advantages, and disadvantages.
Overview of Thread Milling
Thread milling is a method of cutting threads into a workpiece using a tool that maintains a limited contact area with the workpiece. For internal threads in a hole, the thread milling cutter has a diameter smaller than the hole. It rotates at a relatively high speed while following a circular path around the hole’s circumference. This differs from tapping, where the tap’s diameter matches the threaded hole, and the tap contacts the workpiece along its entire circumference during the process.
The primary function of thread milling is to produce threads in a workpiece. It is most used for internal threads in holes, but it can also create external threads on parts. Thread mills have a fixed pitch (threads per inch or lead), yet they can produce both left-hand and right-hand threads and accommodate various thread flank angles.
Thread milling is primarily employed for threading in materials that are difficult to machine. For softer or more machinable materials, traditional tapping is typically used to produce threads in holes. Thread milling is also preferred for large-diameter threaded holes or for threading to the bottom of blind holes—situations where tapping has limitations or is impractical. Its flexibility also allows it to produce threads on the external surfaces of parts.
How Thread Milling Works
The working principle of thread milling involves using a toothed cutter that moves relatively quickly. The spindle holds the tool, which follows a circular path in the horizontal XY plane while advancing at a constant, low speed along the vertical Z-axis. In this way, each tooth of the cutter forms one thread profile along the Z-axis through the hole during each rotation. Threads can often be completed in a single pass, though they are sometimes produced in multiple (usually two) vertical passes.
How Thread Milling Differs from Other Milling Types
Numerous milling techniques have been developed, each using specific cutters to remove material and shape the workpiece. Thread milling uses a profiled cutting tool that differs from other milling cutters. Some milling operations can be performed manually by turning handwheels to move the cutter, but thread milling requires a CNC milling machine because of the coordinated three-axis motion of the tool. The tool rotates at a constant speed, advances steadily along the Z-axis (vertical), and simultaneously follows a circular path in the XY (horizontal) plane to form the thread. In contrast, other milling types often involve tool rotation with the workpiece moving primarily in one direction, such as in face milling.
Types of Thread Mills
Just as holes in parts vary widely, thread mills come in different designs suited to specific applications. The following are the three main types:
Straight-Flute Thread Mills
These tools feature straight chip evacuation flutes between the cutting teeth. The flutes run parallel to the tool axis (no helix angle). This means multiple consecutive teeth engage the workpiece simultaneously, resulting in a relatively high degree of material engagement. This limits the achievable speeds and feeds, so straight-flute thread mills are generally better suited to more machinable materials. They are often the most appropriate choice for general-purpose applications.
Helical-Flute Thread Mills
Helical-flute thread mills have multiple rows of teeth arranged around the tool’s circumference to aid chip evacuation. However, the flutes are helical, typically at a 15° or 30° angle. This helical arrangement reduces cutting side pressure by staggering the tooth engagement with the workpiece. They are best suited for high-speed milling.
Single-Form Thread Mills
Single-form thread mills feature only one cutting tooth for forming the thread profile, along with multiple chip evacuation flutes. Some versions even include two rows of teeth. This type cuts only one thread per revolution, resulting in slower processing speeds. However, the advantage of cutting a single thread is that it requires significantly lower torque on the tool and generates less heat. Therefore, single-form thread mills are best suited for difficult-to-machine materials and are the most versatile type overall.
Advantages of Thread Milling
Thread milling offers several advantages over tapping, including:
- A single-thread milling tool can produce both internal and external threads, left-hand and right-hand threads, as well as threads of different diameters.
- Since the thread mill does not contact the workpiece along the entire circumference, the degree of engagement with the material is significantly lower. As a result, less power and torque are required to drive the tool.
- Due to the reduced engagement, thread milling tools experience considerably less wear than equivalent taps.
- Thread milling is well-suited to difficult-to-machine materials. In particular, single-form mills can be used for these materials to minimize cutting forces, thereby reducing workpiece distortion, tool vibration, and the risk of tool breakage.
Disadvantages of Thread Milling
Thread milling is not suitable for every application. Some of its drawbacks include:
- In certain cases, the primary disadvantage of thread milling is that it is slower than tapping. If a hole can be reliably and easily threaded with a tap, thread milling will take longer to complete the same thread.
- Compared to tapping, thread milling requires more complex equipment. A CNC machine is essential for thread milling, the process cannot be performed without it.
How to Select a Thread Mill
Several factors influence the choice of thread mill during part production. First is the production batch size. For large volumes, speed may be a critical factor; for small batches, speed is less important, and cost-effective thread mills can be used even at lower feeds and speeds.
Second, the hole diameter may determine whether an indexable tool or a solid carbide tool is more appropriate. Indexable tools use removable carbide inserts, so only the small cutting portion needs replacement rather than the entire tool. For larger diameters, indexable tools are usually more economical than solid carbide tools, which must be replaced entirely when worn.
A third consideration is the depth of the threaded hole. For very deep holes, single-form thread mills can take a long time, so multi-tooth mills should be considered. Finally, the workpiece material influences the optimal choice of tool substrate and coating.
Choosing the Right Thread Mill
Selecting the appropriate thread mill is critical, as it directly affects the cost-effectiveness of producing each part. Choosing the wrong tool typically impacts the shop in two main ways: either excessive tool wear leads to frequent replacements, or threading takes longer than optimal, reducing productivity. An incorrect thread mill can also result in poor thread quality, leading to scrapped parts.
The choice of thread mill affects speed, quality, and cost-effectiveness. Time is money, and shorter cycle times are always beneficial for machining operations. The right thread mill enables optimal cycle times with relatively high feeds and speeds without prematurely shortening tool life. Extended tool life improves overall cost-effectiveness. The tool should be selected based on the threaded hole and material to avoid excessive wear while still allowing reasonably high-speed threading. This also impacts quality, as heat buildup during threading can cause thread distortion, while vibration and chip impingement can degrade thread surface finish.
Thread Milling Process
The first step in thread milling is to understand the application, the material to be machined, and the geometry of the hole, such as depth, diameter, and required thread specifications. This informs the second step, selecting the most suitable thread mill for the task. The third step involves CNC programming, which requires calculating the radial depth of cut as well as acceptable feeds and speeds. To facilitate programming, it is recommended to use CAD/CAM software designed for thread milling. After programming, it is best to set up a test piece to verify the toolpath, feeds, and speeds without risking production parts. Once testing is successful, full production can begin.
Thread Milling Tips
Every thread milling application benefits from experience in setting up the optimal CNC toolpath. Here are some practical thread milling tips:
- Monitor tool wear and thread quality closely to make appropriate adjustments.
- Use the slowest feasible cutting speed whenever possible.
- Ensure sufficient coolant flow and pressure to maintain safe temperatures at the cutting surface and to aid chip evacuation.
- Securely clamp the workpiece to minimize the risk of vibration during thread milling.
- If cutting-edge wear is observed, consider adjusting the tool entry method. Climb milling from the bottom of the hole or adding extra radial passes can help extend tool life.
