Hot chamber and cold chamber die casting are the two main methods in the metal die casting process, each having unique advantages and applications. Today, we will explore their differences and how to select the appropriate production method.
What is Hot Chamber Die Casting?

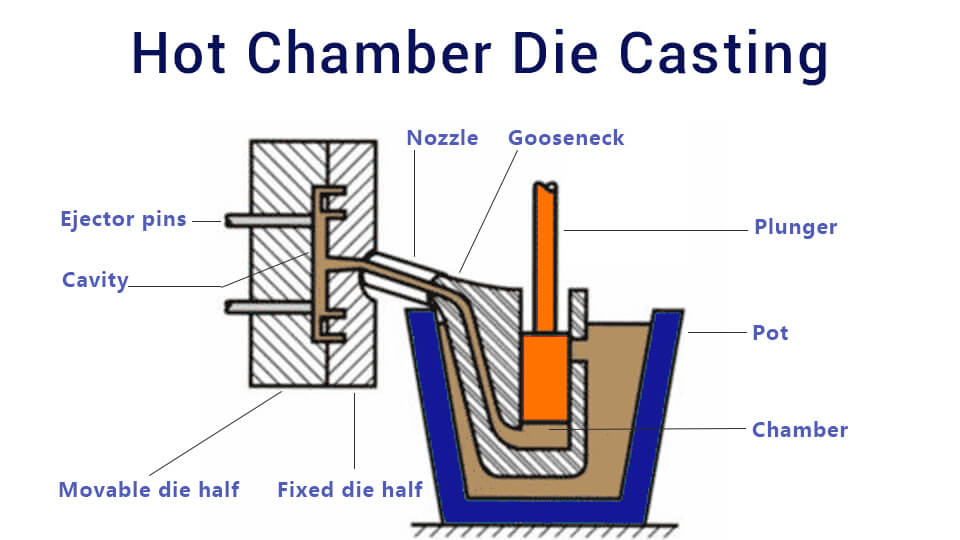

The structural design of a hot chamber die casting machine is quite ingenious, its injection system is integrally connected to the furnace. During operation, the pressure chamber remains submerged within the molten metal inside the furnace. When the casting cycle begins, the liquid metal, driven by the combined forces of gravity and vacuum, automatically and rapidly fills the pressure chamber. Subsequently, the injection plunger applies high pressure to shoot the molten metal into the mold cavity at extreme speeds. The entire process is seamless with a short cycle time, typically completing 15 to 30 cycles per minute, giving hot chamber die casting a clear advantage in production efficiency.
What is Cold Chamber Die Casting?
The operation of a cold chamber die casting machine differs in that its pressure chamber and furnace are independent units. Before casting, a specific amount of molten metal must be ladled from the furnace—either manually or by a mechanical device—and poured into the pressure chamber. Once the liquid metal is in place, the injection plunger activates, forcing the metal into the mold cavity under powerful pressure. Due to the additional steps of ladling and pouring, the cycle time for cold chamber die casting is relatively longer, completing approximately 5 to 15 cycles per minute.
Comparison of Equipment Structure
Hot chamber machines are compact and efficient, while cold chamber machines are complex and bulky.
Hot Chamber: These machines feature a compact structure and a small footprint. The integrated design of the pressure chamber and furnace reduces heat loss during metal transfer and simplifies the equipment, making the operation more straightforward. Furthermore, they are usually equipped with specialized temperature control systems to precisely manage the metal temperature, ensuring process stability. However, because the pressure chamber is constantly submerged in high-temperature molten metal, the materials for the chamber and plunger must be highly heat-resistant and wear-resistant, which increases maintenance costs to an extent.
Cold Chamber: These machines are relatively complex and larger in size. Because the pressure chamber is independent of the furnace, the design prioritizes the strength and rigidity of the injection system to withstand higher injection pressures. Their furnaces are often designed with larger capacities to meet large-scale production needs. Additionally, the pressure chamber and plunger are exposed to air after each cycle, allowing them to cool faster, which helps extend their service life. However, the complex structure leads to higher manufacturing costs and requires professional technicians for installation and debugging.
Comparison of Applicable Materials
Hot chamber die casting is suitable for low-melting-point metals, while cold chamber die casting is suited for high-melting-point metals.
Hot chamber die casting is mainly used for metals with lower melting points, such as zinc, tin, and lead alloys. These metals melt at relatively low temperatures and possess good fluidity. For instance, zinc alloys typically melt between 380°C and 420°C. Using hot chamber casting for zinc alloys results in products with smooth surfaces and high dimensional accuracy while significantly improving efficiency and reducing costs.
Cold chamber die casting has an independent pressure chamber and powerful injection capabilities, this is the preferred process for high-melting-point metals like aluminum, magnesium, and copper alloys. These metals require high temperatures to melt and maintain fluidity. Cold chamber machines can withstand the impact of these high-temperature liquids, using precise parameter control to ensure the metal fills every corner of the mold. For example, aluminum alloys melt between 600°C and 700°C, and cold chamber casting meets the production requirements for parts widely used in the automotive and aerospace industries.
Start Your Production From Prototyping to Scale
- Reliable, On-time Global Delivery
- Multiple Certifications Available
- Full Inspection Before Every Shipment
Comparison of Production Efficiency
Hot chamber die casting features short cycle times and high production efficiency. When mass-producing small castings, it acts like a high-speed production line, continuously outputting products. In contrast, cold chamber die casting has longer cycle times and lower efficiency. Within the same timeframe, a hot chamber machine can produce a significantly higher volume of parts, which is highly attractive to companies with high output requirements.
Cost Comparison
Hot chamber die casting service generally involves lower costs.
Equipment Costs: Hot chamber machines are cheaper to manufacture due to their simpler structure. However, because they support a narrower range of materials, a company might need to purchase multiple specialized machines for different alloys, potentially increasing total investment. Conversely, while cold chamber machines are more expensive to build, their versatility allows a single machine to handle various metals, which may lower procurement costs for multi-material production.
Mold Costs: There is no significant difference between the two methods regarding mold costs. Costs depend primarily on the complexity, size, material, and manufacturing process of the specific part.
Operating Costs: Hot chamber casting has lower per-unit costs for energy and labor because of its high efficiency. While cold chamber casting is less efficient, the higher price of the materials used (like aluminum or copper) often represents a larger portion of the total cost. Additionally, cold chamber systems consume more energy to provide the necessary high injection pressure.
How to Choose Between Them?
Material Properties: If you are casting low-melting-point metals like zinc, tin, or lead, hot chamber is the best choice. For high-melting-point metals like aluminum, magnesium, or copper, cold chamber die casting is essential.
Structure and Size: Hot chamber casting is ideal for small, simple parts, especially thin-walled or high-precision components. Cold chamber casting is more suitable for large, complex parts where powerful injection is needed to fill intricate sections and reduce defects like porosity or shrinkage.
Batch and Budget: For large production runs where cost sensitivity is high, the efficiency of hot chamber casting is advantageous. For smaller batches or the need to switch between different materials, cold chamber casting offers the necessary flexibility.
Both hot chamber and cold chamber die casting have their pros and cons. In actual production, a comprehensive evaluation of material properties, product structure, production volume, and budget is required to make the most suitable choice for your requirements.
