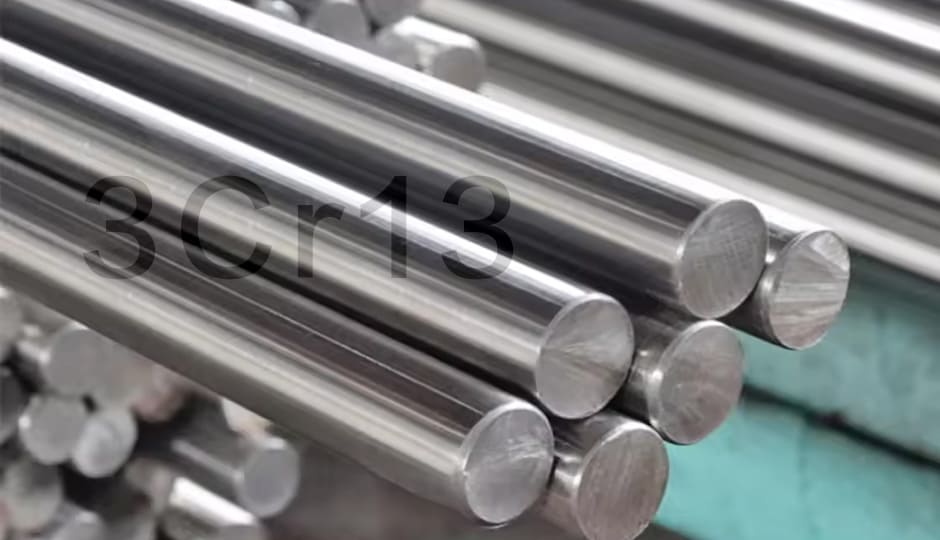

3cr13 stainless steel is a budget-friendly martensitic stainless steel that offers a good balance of corrosion resistance and hardness. It’s a popular choice for a variety of applications where cost-effectiveness is a primary concern.
What is 3cr13 Stainless Steel?
3cr13, sometimes referred to as 30Cr13, is a Chinese martensitic stainless steel.
Stainless Steel: This refers to a material that contains sufficient chromium (at least 10.5%) to resist rust and corrosion.
Martensitic: This is the important part for tools. It refers to a special, super-strong internal structure that the steel can form. Think of it like microscopic crystals linking together to become a rigid, hard wall. This structure is created through heat treating, which is what gives the steel the high hardness needed to maintain a sharp edge.
The “3” in the name indicates a carbon content of approximately 0.3%, while “Cr13” signifies about 13% chromium. This composition gives it its characteristic properties. It is often compared to the 420 series of stainless steels.
Equivalent Grades
3cr13 is often considered equivalent to the following grades from other international standards:
- USA (AISI/ASTM): 420B
- Japan (JIS): SUS420J2
- Germany (DIN): X30Cr13
Chemical Composition
The typical chemical composition of 3cr13 stainless steel is as follows:
| Element | Percentage |
| Carbon (C) | 0.26% – 0.35% |
| Chromium (Cr) | 12.00% – 14.00% |
| Silicon (Si) | ≤ 1.00% |
| Manganese (Mn) | ≤ 1.00% |
| Phosphorus (P) | ≤ 0.040% |
| Sulfur (S) | ≤ 0.030% |
The key elements influencing its properties are:
Carbon: A higher carbon content increases the steel’s hardness and strength.
Chromium: This is the primary element that provides corrosion resistance.
Properties of 3cr13 Stainless Steel
The properties of 3cr13 make it a versatile material for various applications.
Physical Properties
| Property | Value |
| Density | 7.75 g/cm³ |
| Melting Point | Approximately 1450-1510°C |
Mechanical Properties
| Property | Value |
| Tensile Strength (Ultimate) | ≥ 735 MPa |
| Tensile Strength (Yield) | ≥ 540 MPa |
| Elongation at Break | ≥ 12% |
| Hardness (Rockwell) | Typically 52-55 HRC |
Thermal Properties
This steel has moderate heat resistance. It is not recommended for applications involving high temperatures, as it can lose its temper and hardness.
Characteristics of 3cr13 Stainless Steel
Corrosion Resistance
With a chromium content of 12-14%, 3cr13 offers good resistance to atmospheric corrosion, fresh water, and mild acids and alkalis. However, its corrosion resistance is lower than that of austenitic stainless steels like 304.
Heat Treatment
3cr13 is a hardenable steel. Through heat treatment processes like quenching and tempering, its hardness can be significantly increased.
Machinability
This steel is relatively easy to machine in its annealed state. Its machinability is a key factor in its cost-effectiveness for manufacturing.
Weldability
Welding of 3cr13 is possible but requires preheating and post-weld heat treatment to prevent cracking and maintain its mechanical properties.
Advantages & Disadvantages
Advantages:
- Cost-Effective: It is an inexpensive steel, making it ideal for mass-produced items.
- Good Corrosion Resistance: Sufficient for everyday applications and general use.
- Hardenable: Can be heat-treated to achieve good hardness and wear resistance.
- Easy to Sharpen: Due to its moderate hardness, it is relatively easy to sharpen, making it user-friendly for items like knives.
Disadvantages:
- Edge Retention: While it can be sharpened to a fine edge, it does not hold its sharpness as long as higher-carbon or more alloyed steels.
- Moderate Toughness: It can be prone to chipping if used for heavy-duty applications.
- Limited Corrosion Resistance in Harsh Environments: It is not suitable for saltwater or highly corrosive chemical environments.
