Welding is a fundamental fabrication process used across countless industries. This guide provides a detailed overview of its principles, a breakdown of its various methods, and a look into the advanced technologies shaping its future.
Introduction to Welding
Welding is a fabrication process that joins materials, typically metals, by using high heat to melt the parts together and allowing them to cool, causing fusion. Pressure can also be used in conjunction with heat, or by itself, to produce a weld. This process creates a permanent bond through intermolecular forces at the joint.
Welding methods are broadly categorized into 3 main types based on the heating level and process characteristics.
1. Fusion Welding: This involves locally heating the workpieces at the joint to a molten state to form a weld pool. A filler metal is often added. As the pool cools and solidifies, it forms a weld seam, creating a single, inseparable piece. Common methods include Gas Welding, Arc Welding, Electroslag Welding, Plasma Arc Welding, Electron Beam Welding, and Laser Welding.
2. Solid-State Welding (Pressure Welding): This category of welding requires the application of pressure, with or without external heat. The joining occurs in the solid state, without melting the base metals. Common methods include Resistance Welding, Friction Welding, Cold Pressure Welding, Diffusion Welding, and Explosion Welding.
3. Brazing and Soldering: This method uses a filler metal (a brazing or soldering alloy) with a melting point lower than that of the base metals. The filler metal is melted and drawn into the joint by capillary action, where it diffuses with the base metal to form a strong bond. The workpieces themselves are not melted and typically undergo no plastic deformation.
Advantages of Welding
Material Savings and Lighter Structures: Welding allows for efficient use of materials, resulting in lighter and more streamlined designs compared to casting or riveting.
Versatile and Complex Construction: It enables the creation of large, complex components by joining smaller, simpler parts, which simplifies casting, forging, and machining processes for optimal economic and technical outcomes.
High-Performance Joints: Welded joints offer excellent mechanical strength and sealing properties.
Bimetallic Structures: Welding makes it possible to join dissimilar metals, allowing for structures that leverage the unique properties of each material.
Overview of Welding Processes
I. Arc Welding
Arc welding uses a power supply to create an electric arc between an electrode and the base material to melt the metals at the joining point. An arc is an intense and sustained gas discharge phenomenon. A voltage potential is maintained between positive and negative electrodes, and the gas medium between them becomes ionized. The arc is typically initiated by briefly touching the electrode to the workpiece and then pulling it away, creating a short circuit that ignites the arc. Once established, the power supply maintains the potential difference to sustain the arc.
Arc: Welding arcs are characterized by low voltage (typically 20–30 V), high current (from tens to thousands of amperes), high temperature (up to 5000 K), high energy density, and mobility. The arc consists of three regions: the cathode region, the anode region, and the arc column. Arc welding power sources are classified as AC, DC, Pulsed, and Inverter power supplies.
Common types of arc welding are as below.
1. Shielded Metal Arc Welding (SMAW)
Also known as manual metal-arc welding (MMAW), SMAW is the oldest and one of the most widely used arc welding processes. It uses a consumable electrode coated in flux to lay the weld. The heat of the arc melts the flux, which produces a shielding gas to protect the arc and a layer of slag to cover the molten weld pool. This slag also facilitates metallurgical reactions and can add alloying elements to improve the weld metal’s properties. It is ideal for short welds in repair and assembly, especially in hard-to-reach areas. It is suitable for most industrial carbon steels, stainless steels, cast iron, copper, aluminum, and nickel alloys.
2. Submerged Arc Welding (SAW)
In SAW, the arc is hidden beneath a blanket of granular, fusible flux. The process involves depositing a layer of flux along the weld seam, then feeding a consumable wire electrode into the joint, and striking an arc under the flux. The wire is fed automatically as the arc travels along the joint. Its advantages include:
High Weld Quality: The flux provides excellent shielding from the atmosphere, resulting in very low nitrogen and oxygen content in the weld. The automated process and long weld pool time allow for thorough metallurgical reactions.
Improved Working Conditions: The flux layer covers the arc flash, improving operator safety and comfort.
High Productivity: A shorter electrode stickout allows for higher current and current density, leading to deeper penetration and higher deposition rates. The insulating flux blanket increases thermal efficiency, enabling faster welding speeds.
Due to its high deposition rate and deep penetration, SAW is ideal for long, straight welds on medium to thick plates. It is extensively used in shipbuilding, pressure vessel manufacturing, bridge construction, and heavy machinery. It is primarily used for ferrous metals like carbon and low-alloy steels.

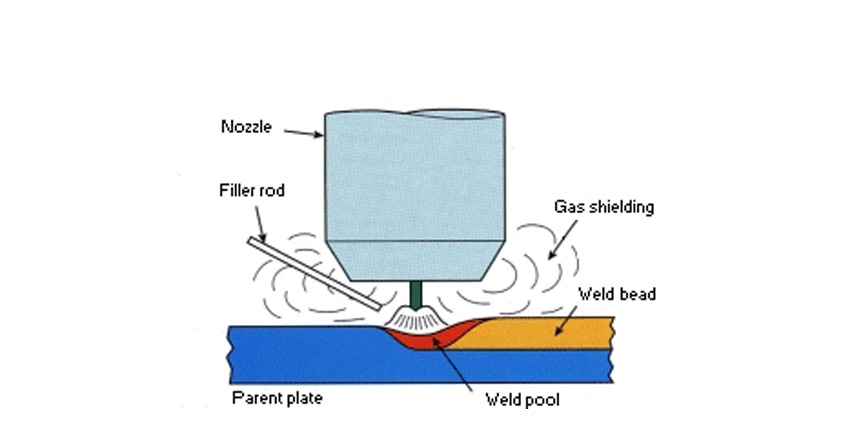

3. Gas Tungsten Arc Welding (GTAW / TIG)
Commonly known as TIG (Tungsten Inert Gas) welding, this is a non-consumable electrode process. An arc is established between a tungsten electrode and the workpiece. The tungsten electrode does not melt; it only serves to create the arc. An inert shielding gas, typically argon or helium, flows from the torch to protect the weld area. Filler metal can be added separately if needed.
Advantages: Excellent control over heat input, producing exceptionally high-quality and clean welds.
It is ideal for welding thin materials and for root passes. It can be used on almost all metals, especially reactive metals like aluminum, magnesium, titanium, and zirconium that form refractory oxides. Its main drawback is a slower welding speed compared to other arc welding methods.
4. Gas Metal Arc Welding (GMAW)
Also known as MIG (Metal Inert Gas) or MAG (Metal Active Gas) welding, GMAW is a fusion welding process where an electric arc forms between a continuously fed consumable wire electrode and the workpiece. The wire serves as both the electrode and the filler metal. A shielding gas protects the arc and weld pool.
CO₂ Welding (A type of MAG)
The high temperature of the arc decomposes the CO₂ into CO and O, which constricts the arc. This creates a focused arc but can lead to larger droplet transfer and increased spatter. However, CO₂ provides excellent shielding due to its high density. The process is energy-efficient and low-cost. CO₂ is an oxidizing gas, which can lead to the loss of alloying elements. To counteract this, deoxidizers are included in the welding wire. It is widely used in the automotive, shipbuilding, and manufacturing industries. It is primarily suitable for carbon steel, low-alloy steel, and high-strength low-alloy steels. It is not the preferred method for non-ferrous metals or stainless steel.
5. Plasma Arc Welding (PAW)
PAW is an advanced form of GTAW where the plasma arc is constricted through a water-cooled nozzle. This constriction increases the arc’s temperature, energy density, and velocity.
Keyhole Plasma Arc Welding: Uses higher currents (100–300A). The arc fully penetrates the workpiece, creating a “keyhole.” As the torch moves, molten metal flows behind the keyhole to form the weld, enabling single-pass welding of plates up to 10 mm thick (stainless steel).
Microplasma Arc Welding: Uses very low currents (0.1–30A) for welding thin foils and sheets (0.025–2.5 mm).
They have advantages such as high energy density, strong penetration, fast welding speeds, and minimal distortion. The retracted tungsten electrode prevents tungsten inclusions in the weld. They are widely used in aerospace and other high-tech industries for welding copper, titanium alloys, stainless steel, and other high-performance metals.
6. Flux-Cored Arc Welding (FCAW)
FCAW is similar to GMAW but uses a tubular wire electrode filled with flux. The flux provides shielding, deoxidizers, and alloying elements. Some FCAW wires are “self-shielded,” while others require an external shielding gas (often CO₂). It combines the versatility of SMAW with the high productivity of GMAW. The flux provides additional metallurgical benefits, improving the weld quality.
It is suitable for a wide range of ferrous metals and joining applications, and is heavily used in construction and heavy fabrication.
II. Fusion Welding Processes
1. Gas Welding (Oxy-Fuel Welding)
Gas welding uses the heat from the combustion of a fuel gas (like acetylene) with oxygen. The oxy-acetylene flame can reach temperatures up to 3200°C. There are several types.
Neutral Flame: (O₂ to C₂H₂ ratio ≈ 1.1:1) Complete combustion; used for steels and non-ferrous alloys.
Carburizing Flame: (O₂ to C₂H₂ ratio < 1) Excess acetylene; used for high-carbon steel and cast iron.
Oxidizing Flame: (O₂ to C₂H₂ ratio > 1.2) Excess oxygen; used for brass and bronze brazing.
Characteristics: Low heating speed, low productivity, and a large heat-affected zone, which can cause significant distortion. However, the equipment is simple, portable, and low-cost, making it useful in locations without electricity. Today, its use is limited mainly to thin steel sheets, copper alloys, and cast iron repair.
2. Electroslag Welding (ESW)
ESW is a highly productive process for welding very thick materials in a vertical position. It uses the electrical resistance of molten slag to generate heat. The process starts with an arc to melt the flux, creating a pool of molten slag. Once the slag pool is deep enough, the arc extinguishes, and the heat is generated by the current passing through the conductive slag.
Advantages: Capable of welding very thick sections (30 mm to over 1000 mm) in a single pass at a high deposition rate.
Limitations: The slow heating and cooling rates result in a very large grain structure in the weld and heat-affected zone, which reduces toughness. Post-weld heat treatment (normalizing) is almost always required. It is limited to the vertical position.
It is used in heavy machinery to join large forgings and castings, such as for machine bases and pressure vessels.
3. Electron Beam Welding (EBW)
EBW uses a focused beam of high-velocity electrons to generate heat and fuse materials. The process is typically conducted in a vacuum chamber. An electron gun generates and accelerates electrons to about half the speed of light. A magnetic coil focuses the beam onto the workpiece, where the kinetic energy is converted to thermal energy, instantly melting the material.
Advantages: Extremely high energy density, resulting in deep, narrow welds with a very small heat-affected zone and minimal distortion. The vacuum environment ensures high purity and strength. It can weld materials from very thin foils to thick sections (up to 300 mm).
It is ideal for high-quality welding of reactive, refractory, and dissimilar metals. Used in aerospace, nuclear, and automotive industries.
4. Laser Beam Welding (LBW)
LBW uses a highly concentrated beam of coherent monochromatic light as its heat source. The laser beam is focused by lenses or mirrors to achieve a very high power density, which can be used for welding, cutting, and drilling. The most common industrial lasers are YAG (solid-state) and CO₂ (gas). It can be performed in air (no vacuum needed). The beam can be transmitted via fiber optics, making it suitable for robotic and automated welding of micro-components. It offers high-speed welding with very low heat input and distortion. It is not affected by magnetic fields and produces no X-rays.
It is widely used in the electronics, medical, and automotive industries for precision welding of components like silicon steel sheets and galvanized steel.
III. Solid-State Welding
1. Resistance Welding
This process uses the heat generated from electrical resistance to join materials. A large current is passed through the workpieces, which are held together under pressure by electrodes. The highest resistance occurs at the interface between the parts, generating heat that forms a weld nugget. Types include spot welding, seam welding, projection welding, and flash butt welding. it is fast, easily automated, and requires no filler metals or shielding gases, making it low-cost and highly productive. The metallurgy is simple, as the molten nugget is protected by surrounding solid metal.
It is used in the automotive and appliance industries for joining thin sheet metal (typically <3 mm thick).
2. Friction Welding (FRW)
FRW is a solid-state process that generates heat through mechanical friction between a moving workpiece and a stationary workpiece, while under pressure. Once the interface reaches a plastic state, the rotation is stopped, and a higher forging force is applied to create the bond. It has high weld quality and consistency, high productivity (5-6 times faster than flash welding). Excellent for joining dissimilar metals (e.g., copper-to-aluminum, steel-to-aluminum). Low cost and energy efficient.
it can be used to manufacture bimetallic products like copper-aluminum transition joints, high-speed steel cutting tools, and automotive components like valves and axle shafts.
3. Diffusion Welding (DFW)
Also known as diffusion bonding, this is a solid-state process where two clean, flat surfaces are held together under high pressure and temperature (below the melting point) in a vacuum or protective atmosphere. Atoms diffuse across the interface, eliminating the original boundary and forming a solid joint.
Advantages: Joins a wide variety of similar and dissimilar materials (including metal-to-ceramic) with minimal impact on their properties. Produces joints with high precision and minimal distortion.
Limitations: Requires extremely clean and smooth surfaces. The process is very slow, with high equipment and preparation costs.
It is used in aerospace, nuclear, and electronics industries for creating complex, multi-layered structures and joining materials that cannot be fusion welded.
IV. Brazing
Brazing joins materials using a filler metal that has a melting point lower than the base materials. The filler metal melts and is drawn into the joint by capillary action. Unlike welding, the base materials do not melt. The bond is formed through the diffusion between the liquid filler metal and the solid base material. Low heat input results in minimal stress and distortion. It’s excellent for joining dissimilar metals and creating neat, clean joints. However, brazed joints generally have lower strength and heat resistance than welded joints.
Filler Metals (Brazing Alloys) and Fluxes:
Brazing (Hard Brazing): Uses filler metals with melting points above 450°C. Common fillers include brass and silver-based alloys. Used for high-strength applications on steel, copper alloys, and tools.
Soldering (Soft Brazing): Uses filler metals with melting points below 450°C. Tin-lead alloys are common. Used in electronics and plumbing where high strength is not required.
Flux: A chemical compound used to clean the surfaces of oxides and prevent re-oxidation during heating, promoting wetting and capillary flow.
Heating Methods: Flame brazing, induction brazing, furnace brazing, dip brazing, etc.
It is used to manufacture carbide tools, bicycle frames, heat exchangers, and electronic components.
Other Welding Processes
High-Frequency Welding (HFW)
Uses high-frequency current (either contact or induction) to heat the edges of a material to a plastic state, after which they are forged together. It is a highly productive process used almost exclusively for manufacturing pipes and tubes that are longitudinally or spirally welded.
Explosion Welding (EXW)
A solid-state process that uses the energy from a chemical explosion to accelerate one workpiece into another at extremely high velocity, creating a metallurgical bond upon impact. It is highly effective for cladding large plates with a dissimilar metal (e.g., steel with titanium).
Ultrasonic Welding (USW)
A solid-state process that uses high-frequency ultrasonic vibrations under pressure to join materials. The vibrations create intense friction at the interface, generating heat and forming a bond. It is ideal for joining thin foils, wires, and plastics, especially for dissimilar metals.
Advanced Welding Technologies
1. Welding Robots
The evolution from mechanization to automation and intelligence is a key trend in welding. Welding robots are a hallmark of this shift, enabling automated production even in small batches.
Teach-Pendant Robots: These robots are “taught” a welding path and parameters, which they then repeat precisely. They are widely used in mass production on assembly lines but lack the flexibility to adapt to environmental changes.
Intelligent Robots: These advanced robots can use sensors (like vision systems) to automatically identify a weld seam, track it in real-time, and adjust torch position and welding parameters to ensure quality. They are more flexible and can be deployed for various tasks, though they are still primarily in the research and development stage.
2. Application of Computer Software
Software is transforming the welding industry in several key areas:
Computer Simulation: Simulating the complex physics of welding (thermal processes, metallurgy, stress, and distortion) allows engineers to optimize designs and welding procedures digitally. This drastically reduces the need for expensive and time-consuming physical experiments, saving manpower, materials, and time, especially when working with new materials or structures.
Databases and Expert Systems: Software systems are used to manage welding procedure specifications (WPS), welder qualifications, material properties, and industry standards. Expert systems can assist in selecting the optimal welding process, diagnosing defects, and estimating costs.
Computer-Aided Quality Control (CAQ): Used for real-time monitoring of welding parameters and statistical analysis of production data to ensure consistent quality. Additionally, CAD/CAM systems are increasingly used for designing welded structures and programming CNC cutting machines and robotic welders.
About Getzshape
Got a design you are excited to turn into reality? At Getzshape, we make rapid prototyping easier. Just upload your 3D designs and/or 2D drawings, you’ll get a quick quote for your custom welding parts within 24 hours. Our experienced team is here to help you pick the optimized material and manufacturing processes for your project. Reach out today, and let’s bring your ambitious ideas to life!
