Surface roughness, or simply roughness, refers to the characteristic of surface irregularity. In the machining industry, this is considered essential core knowledge, yet it is often one of the most overlooked aspects. For those of us in machining who tend to focus more on parameters, tooth profiles, and structures, we often pay too little attention to it. Ask yourself: what does a Ra 1.6 turned surface look like? Do you have a concrete image of it in your mind?
What is Surface Roughness?
Surface roughness is the characteristic of surface irregularity. It is quantified by the deviation of the direction of a real surface’s normal vector from its ideal form. If the deviation is large, the surface is rough; if it is small, the surface is smooth. Roughness is generally considered to be the high-frequency, short-wavelength component of a measured surface. However, in practice, it is often necessary to understand both amplitude and frequency to ensure a surface is fit for a specific purpose. Surface roughness is an indicator of the surface texture of a part after processing, representing the average of the microscopic deviations and irregularities on the machined part’s surface.
Indicators of Surface Roughness
Surface roughness plays a vital role in determining how a physical object interacts with its environment. While high roughness values are usually undesirable, controlling roughness during manufacturing can be difficult and expensive. Designers and process engineers often need to find a trade-off between the manufacturing cost of a part and its application performance.
The most common indicators of surface roughness are as follows:
Ra
Ra is the arithmetic average of the surface height deviations from the mean line measured over a specified distance. The mean line is the “average midpoint” between the peaks and valleys of the profile. Ra is the average height of all peaks above this line.
Rz
Rz is the average maximum height of surface irregularities. It is the average of the vertical distances between the highest peak and the lowest valley over a given length.
Rp
Rp is the height of the highest peak from the mean line within a specified sampling length.
Rv
Rv is the depth of the deepest valley from the mean line within a specified sampling length.
Lay
Lay is the primary direction of the surface texture, indicating the direction in which most surface irregularities lie.

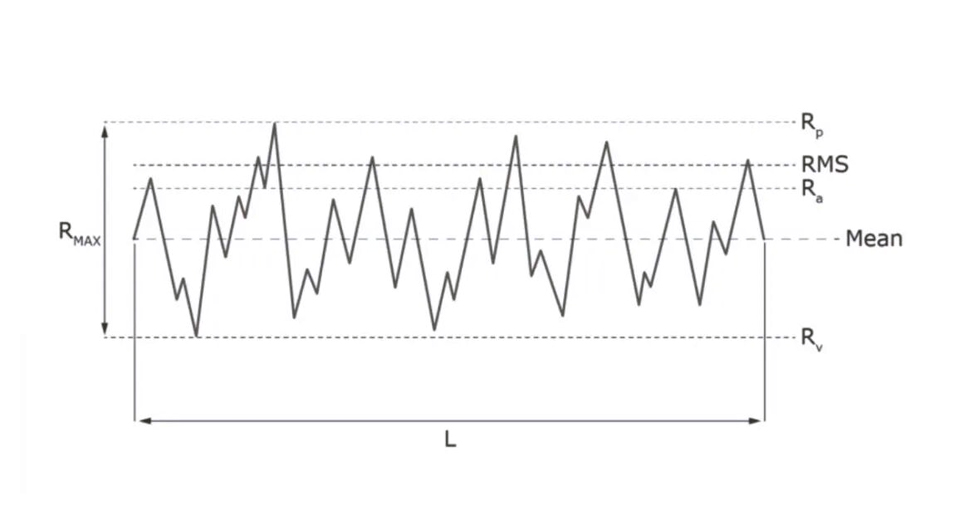

The following diagram illustrates these indicators over a sample length of a part surface.
Ra is the most used indicator for defining surface roughness in CNC machining, measured in µm (micrometers). The lower the Ra value, the smaller the variation in surface irregularities, resulting in a smoother surface. As the Ra value increases, the surface becomes rougher with more pronounced texture.
Why is Surface Roughness Important?
Surface roughness is a critical consideration in CNC machining projects. Beyond affecting functionality and aesthetics, it influences machining costs, labor, and time. Some effects of surface roughness on CNC machined parts include:
Contact
Friction is essential for maintaining contact between surfaces, and friction increases with surface roughness. For components requiring non-moving contact, such as assembly units and parts to be handled, sufficient surface roughness is needed to maintain grip and minimize slippage.
Motion
While friction is vital for static contact, it is detrimental to moving, vibrating, or load-bearing mating parts because it hinders motion, increases energy consumption, generates heat, and accelerates wear. To minimize friction and improve wear resistance, surface roughness must be reduced. Conversely, roughness creates grooves that enhance lubricant retention, which is essential in motion systems.
Coating Adhesion
Surface roughness affects a surface’s ability to support a coating like anodizing or powder coating. Micro-grooves on relatively rough surfaces can trap coating substances, thereby improving the absorption and retention effects of the coating.
Aesthetics
Surface roughness directly impacts the aesthetic quality of a part. Glossy, mirrored, grainy, or matte appearances depend on how surface roughness interacts with light. For example, lower surface roughness leads to better light reflection and a glossier surface finish because there are fewer irregularities to scatter light.
Cost
Achieving a specific surface roughness impacts part cost. For instance, reaching low surface roughness requires slow machining speeds and multiple passes, among other considerations. This careful tool movement minimizes surface irregularities but increases machining time, effort, and cost.
Furthermore, surface roughness affects electrical conductivity, sealing, hygiene, and optical properties. Although microscopic, surface texture plays a crucial role in various applications. Surface roughness itself is neither inherently good nor bad, the ideal roughness depends on the specific application of the part.
Basis Factors for Surface Roughness

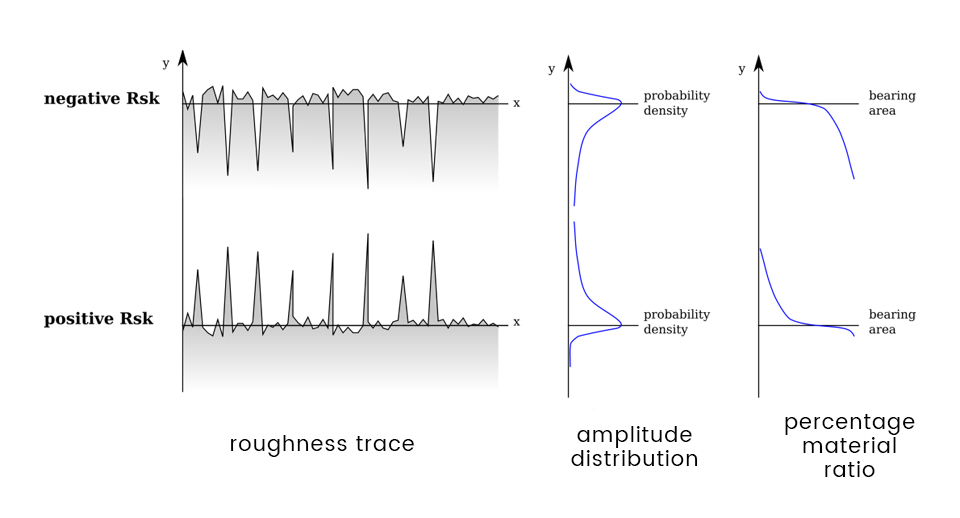

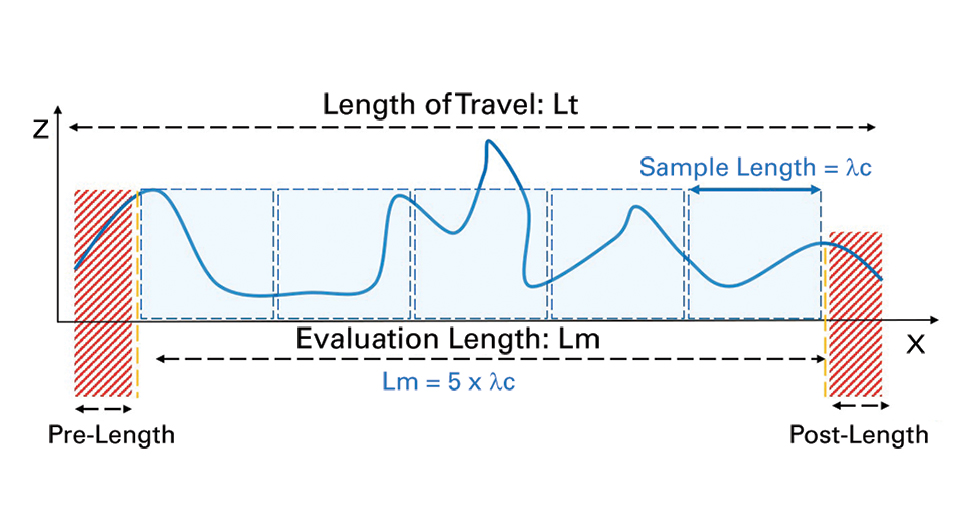

Sampling Length
The sampling length L is a specified reference line length used when evaluating surface roughness. It should be selected based on the actual formation and texture characteristics of the part’s surface to reflect the specific features of its roughness. When measuring the sampling length, it should align with the overall direction of the actual surface profile. The purpose of defining and selecting a sampling length is to limit and reduce the influence of surface waviness and form errors on the roughness measurement results. Commonly used options for roughness testers are generally 0.25mm, 0.8mm, and 2.5mm.
Evaluation Length
The evaluation length is the total length required to assess the profile, and it may consist of one or several sampling lengths. Since the surface roughness across different parts of a component may not be perfectly uniform, a single sampling length often fails to reasonably reflect the roughness characteristics of a given surface. Therefore, several sampling lengths must be taken across the surface for evaluation. The evaluation length generally contains 1 to 5 sampling lengths (L). For example, if the sampling length is set to 0.8mm and the evaluation length is selected as 5L, the total evaluation length is 5 * 0.8 = 4mm.
Reference Line
The reference line is the profile mean line used to evaluate surface roughness parameters. There are two types of reference lines:
- Least squares mean line of the profile: Within the sampling length, it is the line where the sum of the squares of the profile offsets from the line is minimized, possessing the geometric shape of the profile.
- Arithmetic mean line of the profile: Within the sampling length, the areas of the profile above and below this line are equal.
Theoretically, the least squares mean line is the ideal reference line, but it is difficult to obtain in practical applications. Therefore, the arithmetic mean line is typically used as a substitute, and a straight line in an approximate position can be used during actual measurement.
Measurement Stroke (Traversal Length)
The measurement stroke refers to the actual distance the sensor stylus moves across the workpiece. The measurement stroke is typically calculated as the evaluation length plus two additional sampling lengths. For example, if the evaluation length is selected as 5L and the sampling length L is 0.8 mm, the measurement stroke is 5L + 2L = 7L. Thus, the measurement stroke is 7*0.8 = 5.6 mm. Understanding this is vital for calculating the actual travel distance on the workpiece, which helps determine the minimum contact surface size required for a valid measurement.
CNC Machining Surface Roughness Grades
Machined surface roughness is typically measured by the average roughness (Ra). The Ra values of manufactured parts generally range from 0.1 µm to 6.3 µm (smooth to rough). It is worth noting that surface roughness can also reach values outside this range; for example, silicon wafers used in semiconductor manufacturing can be produced with a surface roughness of Ra 0.01 µm.
Surface Roughness Grade Comparison
Surface roughness is not random; manufacturers take specific process measures to achieve particular Ra values. For standardization, most manufacturers offer four surface roughness grades:
- 3.2 µm Ra
- 1.6 µm Ra
- 0.8 µm Ra
- 0.4 µm Ra
These surface roughness grades have different textures, characteristics, advantages, limitations, and suitable applications.
Ra 3.2
Ra 3.2 µm is the commercial standard for CNC machined parts. Unless otherwise specified by the customer, manufacturers use this as the default. Ra 3.2 µm is characterized by clearly visible machine-cut lines, yet the surface is smooth enough for most consumer parts. This is the recommended maximum roughness for parts subject to stress, loads, or vibration. As the benchmark, Ra 3.2 µm incurs no additional cost.
Applications: Structural machine brackets, automotive hoods, general tooling fixtures, and machine chassis.
Ra 1.6
Ra 1.6 µm is suitable for tight-fit and stressed components, as well as surfaces with slow motion, slight vibration, and light loads. This grade is characterized by faint, slightly visible cut marks. It is achieved through high machining speeds, low feeds, and shallow cuts. This grade increases production costs by approximately 2.5%.
Applications: Hydraulic piston rods, low-speed gearboxes, precision fasteners, and electronics housings.
Ra 0.8
Classified as a high-grade surface finish, Ra 0.8 µm requires finishing processes to achieve. It is ideal for parts with high stress concentration and heavy loads, as well as vibrating and moving components. Due to the need for strict control and fine machining, this grade increases the benchmark production cost by 5%.
Applications: Precision gears, hydraulic valve components, medical device housings, and jewelry components.
Ra 0.4
Ra 0.4 µm is considered a very high-grade smooth texture and is the highest standard CNC machining roughness offered by most manufacturers. It has no visible cut marks and is typically achieved through fine, strictly controlled machining followed by polishing. This additional effort can increase production costs by up to 15%. It is suitable for fast-moving or vibrating mating parts and components under high tension and stress.
Applications: Bearing surfaces, cylinder rods, optical components, and precision injection molds.
How to Measure Surface Roughness?
The measurement of surface roughness is divided into 2 methods: qualitative and quantitative. Qualitative assessment involves comparing the surface under test with standard specimens of known roughness grades, using visual inspection or microscopic aid to determine its grade. Quantitative assessment, on the other hand, utilizes specific measurement methods and corresponding instruments to determine the numerical value of the surface roughness.
Comparison Method
This method is used for on-site workshop measurements and is commonly applied to medium or relatively rough surfaces. It determines the surface roughness value by comparing the surface under test with a roughness specimen marked with a specific numerical value.
Stylus Method
Surface roughness is measured using a diamond stylus with a tip radius of approximately 2 micrometers, which slides slowly across the surface under test. The vertical displacement of the diamond stylus is converted into an electrical signal by an electrical length sensor. After amplification, filtering, and calculation, the surface roughness value is indicated by a display instrument; a recorder may also be used to map the profile curve of the measured cross-section.
Generally, a tool that only displays surface roughness values is called a surface roughness tester, while one that can simultaneously record surface profile curves is referred to as a surface roughness profilometer. Both types of measurement tools are equipped with electronic computing circuits or computers that can automatically calculate the arithmetic mean deviation of the profile (Ra), the ten-point height of microscopic irregularities (Rz), the maximum height of the profile (Ry), and various other evaluation parameters. This method offers high measurement efficiency and is suitable for measuring surface roughness with Ra values ranging from 0.025 to 6.3 micrometers.
Light-Sectioning
In this method, a light band formed by passing light through a slit is projected onto the surface under test, and the surface roughness is measured using the profile curve formed by the intersection line between the light band and the surface. Light emitted from a source passes through a condenser lens, a slit, and objective lens 1, projecting the slit onto the surface at a 45° inclination angle to form a cross-sectional profile image. This image is then magnified by objective lens 2 and projected onto a reticle. The “h” value is first read using a micrometer eyepiece and a reading drum, from which the “H” value is calculated.
The tool utilizing this method is known as a light-sectioning microscope. It is suitable for measuring surface roughness with Rz and Ry values between 0.8 and 100 micrometers. However, it requires manual point selection and has low measurement efficiency.
Interferometry
This method utilizes the principle of light wave interference (see optical flats and laser length measurement technology) to display the shape errors of the surface under test as interference fringe patterns. A high-magnification microscope (up to 500x) is used to enlarge the microscopic portions of these interference fringes for measurement to derive the surface roughness.
The measurement tool employing this method is called an interference microscope. This technique is suitable for measuring surface roughness with Rz and Ry values ranging from 0.025 to 0.8 micrometers.
