Inconel is a group of nickel-chromium-based superalloys known for their exceptional strength, durability, and resistance to corrosion. These properties, while critical for performance, render the material notoriously difficult to process using conventional methods. This article provides a comprehensive overview of Inconel machining.
What is Inconel?

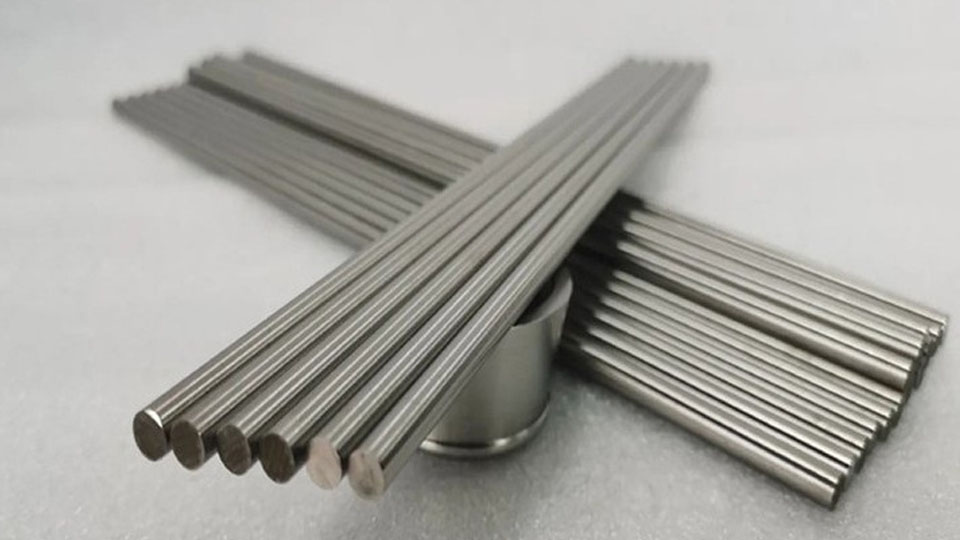

Inconel refers to a class of high-performance nickel-based alloys primarily composed of nickel, chromium, and iron. It is renowned for its excellent high-temperature strength, oxidation resistance, and corrosion resistance. This material is frequently categorized as a nickel-based superalloy.
Performances of Inconel
Inconel possesses several distinguishing properties that make it a critical material in demanding applications:
Table 1: Typical Mechanical Properties of Inconel 718
| Heat treatment | Tensile strength, MPa | Yield strength, MPa | Elongation at break, % | Hardness, HB |
| Annealing | 965 | 550 | 30 | > 363 |
Superior Mechanical Properties
It exhibits favorable mechanical characteristics, including high tensile strength, fatigue strength, and creep resistance. It maintains high strength and toughness across a wide temperature spectrum, making it suitable for manufacturing components subjected to high stress and high heat.
Exceptional Corrosion Resistance
The alloy demonstrates outstanding resistance to various corrosive media. It is highly resistant to chloride and sulfide stress corrosion cracking (SCC), as well as aqueous corrosion and chloride-induced SCC. This makes it an ideal choice for severely corrosive environments like chemical processing, marine engineering, and nuclear reactors. Inconel 718 shows strong resistance to oxidizing media, reducing media, and mixed corrosive environments. Its pitting resistance equivalent number exceeds 30 in chloride-containing seawater, significantly surpassing common stainless steels. In a 5% sulfuric acid solution, the annual corrosion rate is below 0.1mm. Furthermore, it effectively suppresses SCC even in oil and gas environments containing hydrogen sulfide, making it an ideal choice for marine engineering and chemical equipment.
Weldability
Inconel has great welding characteristics, allowing it to be welded in both the annealed and precipitation-hardened conditions. It is compatible with multiple welding methods, including Gas Tungsten Arc Welding (GTAW), Gas Metal Arc Welding (GMAW), Electron Beam Welding (EBW), and Resistance Welding. Crucially, no post-weld heat treatment is typically required, and the alloy retains favorable overall properties after welding.
High Temperature Resistance
Inconel (set 718 as an example) maintains stable mechanical properties over an ultra-wide temperature range, from -253°C up to 650°C. Even at 650°C, its tensile strength remains above 1000 MPa, coupled with exceptional creep performance. For instance, under a stress of 345 MPa at 650°C, the creep deformation after 1000 hours is only 0.2%.
Outstanding Fatigue Strength
The high-cycle fatigue strength of Inconel 718 at 600°C is still 80% of its room-temperature value. It also offers excellent fatigue crack propagation resistance. Its fracture toughness can reach 80 MPa·m¹/², providing strong resistance against sudden brittle fracture under impact loading.
Common Inconel Grades in Machining
Several grades are frequently used in manufacturing processes:
Inconel 625
This is a solid solution strengthened nickel-based wrought superalloy, primarily strengthened by Molybdenum and Niobium. It offers excellent corrosion resistance and high oxidation resistance. It maintains good tensile and fatigue performance from cryogenic temperatures up to 980°C and resists stress corrosion in salt spray atmospheres. It’s widely applied in aero-engine components, aerospace structural parts, and chemical equipment.
Inconel 600
A nickel-chromium-iron-based solid solution strengthened alloy, it features good high-temperature corrosion and oxidation resistance, along with excellent cold and hot workability and weldability. It achieves satisfactory thermal strength and high ductility below 700°C. The alloy can be strengthened via cold working and is suitable for oxidation-resistant parts under low load below 1100°C.
Inconel 718
A precipitation-hardened nickel-based superalloy known for its high resistance to heat and corrosion. It boasts good anti-fatigue, anti-irradiation, anti-oxidation, and anti-corrosion properties, along with good processability and weldability, making it suitable for manufacturing various complex-shaped parts.
Inconel Machining Technologies

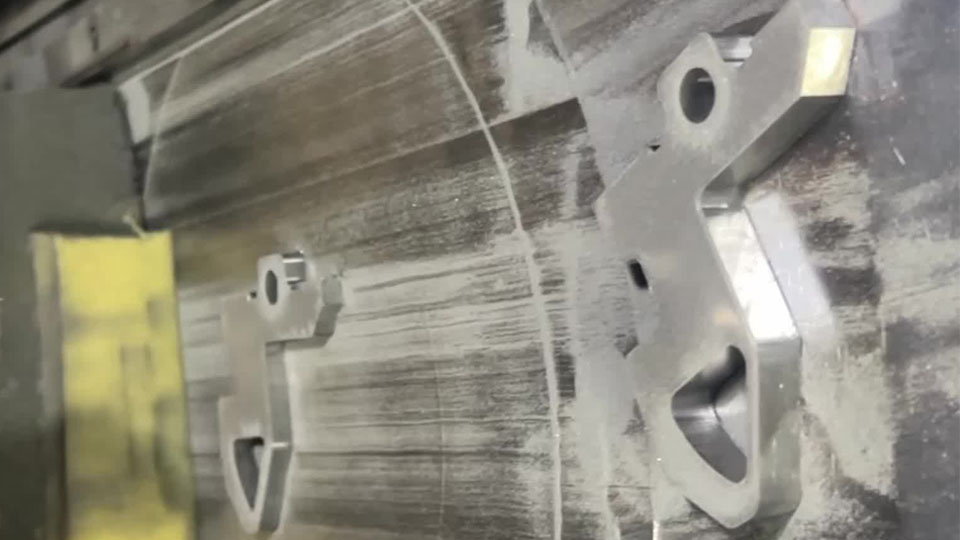

Powder Metallurgy Technology
Powder metallurgy technology relies on metal powders as raw material, which are processed through compaction and sintering. This approach can reduce segregation defects common in vacuum melting and enables near-net shape forming, suitable for mass production of small, complex-shaped metal components. However, there is a risk of introducing contaminants during ball milling, and production costs tend to be high.
PM technologies mainly include Plasma Sintering (SPS), Hot Pressing Sintering (HPS), and Hot Isostatic Pressing (HIP).
SPS features a rapid heating rate, achieving densification in minutes, significantly faster than traditional methods, and can achieve near full density at lower temperatures. It is used for sintering high-melting-point metals and advanced material research.
HPS involves sintering under uniaxial pressure, requiring less forming pressure than cold pressing, which lowers the sintering temperature and shortens the time. However, it demands high-quality die materials, is energy-intensive, and production efficiency and costs are challenging.
HIP employs a high-pressure vessel with an inert gas (e.g., Argon) to apply high temperature and isotropic isostatic pressure, ensuring uniform bulk densification. It is ideal for eliminating internal porosity in high-end castings like single-crystal turbine blades and titanium alloy castings for aerospace.
Additive Manufacturing
AM uses a heat source (like laser, electron beam, or electric arc) to melt and deposit metal powder or wire layer by layer to form a 3D solid. Additive manufacturing can be classified into Directed Energy Deposition (DED) and Powder Bed Fusion (PBF), and by heat source into Selective Laser Melting (SLM), Selective Electron Beam Melting (SEBM), and Wire Arc Additive Manufacturing (WAAM).
SLM has an extremely high cooling rate and a fine laser spot, allowing it to weld most metal powders and manufacture high-precision wear-resistant alloy parts. A potential drawback is the tendency for micro-crack formation.
SEBM operates in a vacuum environment, offering high electron beam energy conversion and fast scanning speed, leading to higher forming efficiency than SLM. It preheats the powder bed to a high temperature, significantly reducing residual stress and minimizing part deformation or cracking, making it especially suitable for aerospace nickel-based superalloy parts requiring exceptional performance. SEBM-formed parts, however, have a rougher surface finish than SLM parts and require subsequent processing.
WAAM offers the highest deposition rate and is not constrained by a chamber, making it suitable for manufacturing ultra-large components. Its products have a rough surface that requires subsequent machining, and the large residual stress and deformation can negatively affect material properties.
Electrical Discharge Machining
Machining Inconel through the traditional machining process is challenging because of its high strength, toughness, and retention of strength at high temperatures, which causes rapid tool wear and failure. EDM uses the localized, instantaneous melting and ablation caused by pulsed discharges to remove material in a non-contact manner. This technique is unaffected by the workpiece’s mechanical properties, giving it a key advantage in processing complex-geometry, poorly machinable parts and making it highly suitable for machining nickel-based superalloys.
Start Your Production From Prototyping to Scale
- Reliable, On-time Global Delivery
- Multiple Certifications Available
- Full Inspection Before Every Shipment
CNC Machining
CNC machining superalloys and other intractable materials presents significant difficulties. Superalloys are highly susceptible to machining-induced deformation and tool deflection (spring-back), which frequently results in components failing to meet stringent dimensional accuracy requirements.
For the cutting tool, machining nickel-based superalloy components leads to rapid tool wear and high tool consumption. Currently, intractable materials constitute the majority of components in modern turbofan engines; superalloys account for 65% of the material mass, despite their extremely low relative machinability.
Furthermore, components such as blades and casings in aerospace engines possess complex geometries and are subject to high surface integrity specifications, further complicating the cutting of nickel-based superalloy parts.
Due to their high Nickel (Ni) and Chromium (Cr) content, these alloys exhibit a marked tendency toward work hardening in their solution-treated state. However, efficient cutting can still be achieved through minor adjustments, such as careful control of the Cobalt (Co) content and judicious tool selection.
Processing the alloy within the forging and hot rolling temperature regimes yields a fine-grained structure, which is beneficial for ensuring a uniform phase distribution during subsequent precipitation strengthening. After standard solution treatment, a direct two-step aging process is typically sufficient, eliminating the need for multiple tempering stages. This streamlined process is both economical and ensures stable performance.
Applications of Inconel Components
Inconel’s outstanding properties make it an indispensable, critical material across several high-end sectors:
Aerospace
Inconel 718 is used in critical components of rocket engine systems, such as liquid oxygen turbopump impellers (withstanding -196°C and 15000 rpm speed) and high-pressure ducts (operating pressure 50 MPa). Notably, the alloy accounts for up to 35% of the material in the SpaceX Falcon 9 rocket engine.
Inconel 718 is the primary choice for wide-chord fan blades and high-pressure compressor disks. For instance, the turbine disks made of Inconel 718 in the GE9X engine are designed to endure continuous loads of 200 MPa at 620°C.
Nuclear Power

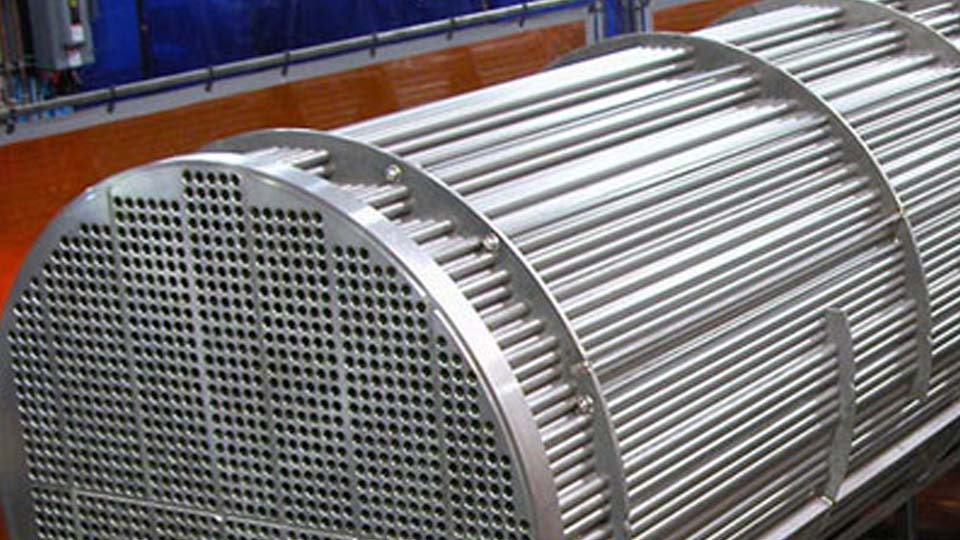

Inconel 690 is widely used in nuclear power plant heat transfer systems due to its superior resistance to high temperatures and corrosion. In the harsh reactor environment—with temperatures above 300°C, intense radiation, and complex chemical corrosion—Inconel 690 performs perfectly. Components like the drive shafts for Pressurized Water Reactor (PWR) control rod drive mechanisms (operating temperature 350°C, pressure 15 MPa) and steam generator heat transfer tubes utilize this alloy. Its radiation swelling resistance is superior to 316 stainless steel.
Energy and Power Engineering
In 60 MW class heavy-duty gas turbines, the combustor outer casing and transition pieces are manufactured from Inconel 718 to withstand flame erosion above 1000°C. For ultra-deep well extraction in H₂S and CO₂, CO₂-containing environments, wellhead valves made from the alloy can withstand 170 MPa high pressure and acidic corrosion.
Marine Engineering and Special Equipment
In deep-sea exploration, the pressure hull framework of 10,000-meter-class submersibles uses Inconel 718, maintaining structural stability under 110 MPa of water pressure. For Liquefied Natural Gas storage tank support structures (operating temperature -162°C), Inconel 718 is chosen because its low-temperature toughness is twice that of austenitic stainless steel.
